Rapid, Maintenance-Free Detection of Over 500 Gases
Capable of detecting all gases except noble gases, the RS2600 Multi-Gas Analyzer enables simultaneous online analysis of multiple gas components, with a detection range from ppm to 100%.
- Multi-component: Simultaneous online analysis of multiple gases.
- Universal detection: Measures over 500 gases, including symmetric molecules (N2, H2, F2, Cl2) and gas isotopologues (H2, D2, T2).
- Rapid response: Detection in less than 2 seconds.
- No need for pressure control: Quantification is not affected by changes in sample gas pressure
- Maintenance-Free: Operates under high pressure with direct detection, requiring no consumables (no chromatographic column or carrier gas).
- Wide quantitative range: Detects concentrations from ppm to 100%.

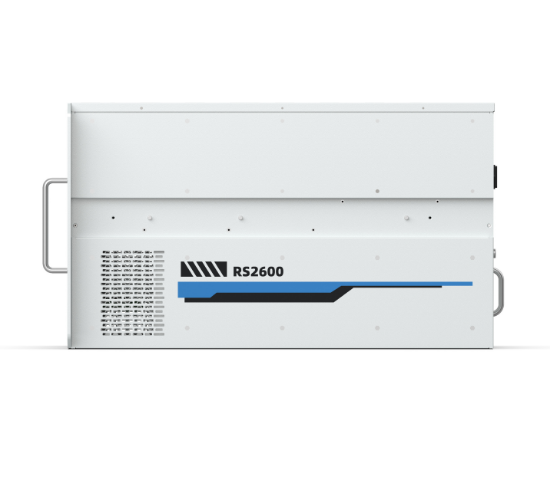

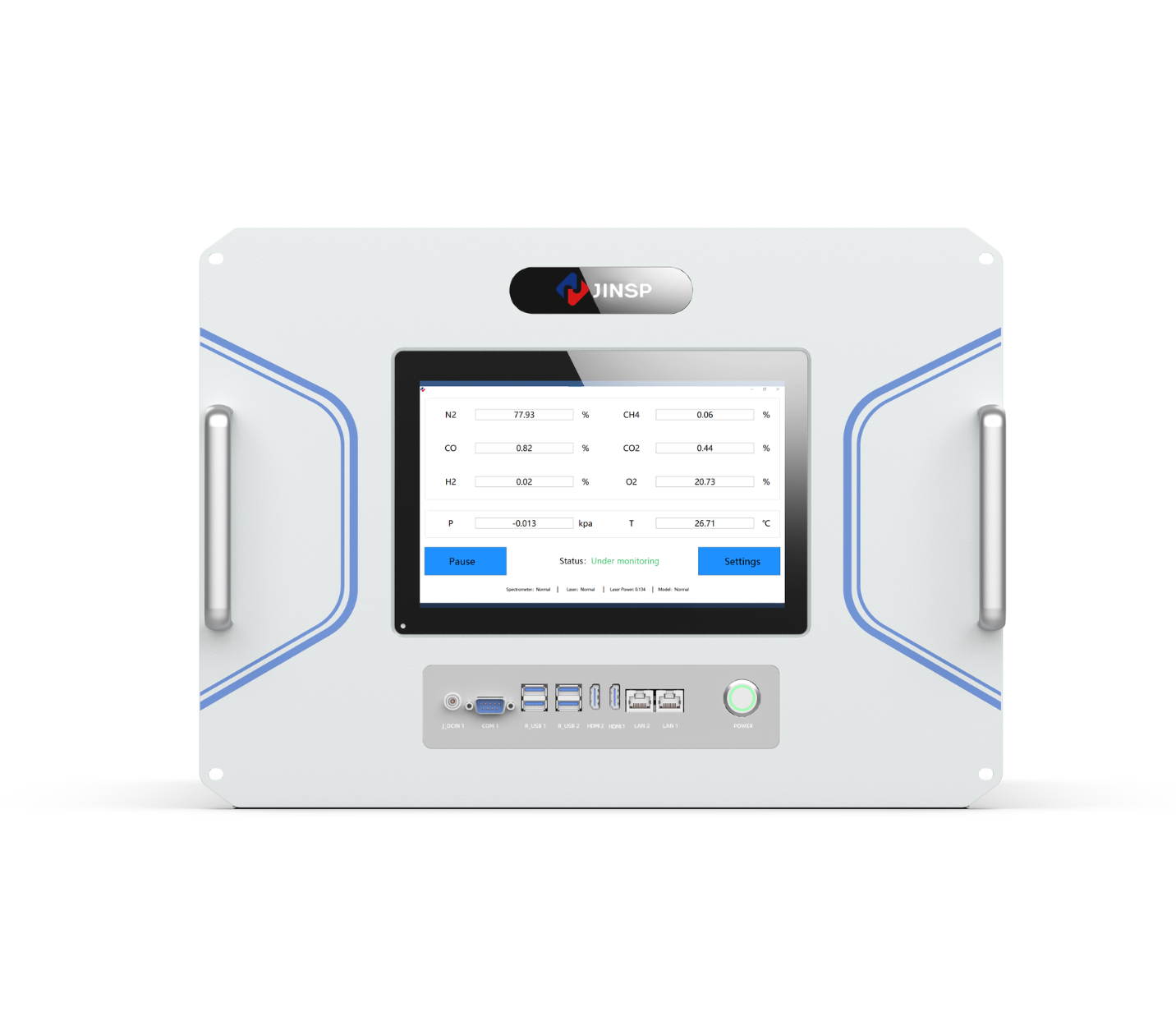

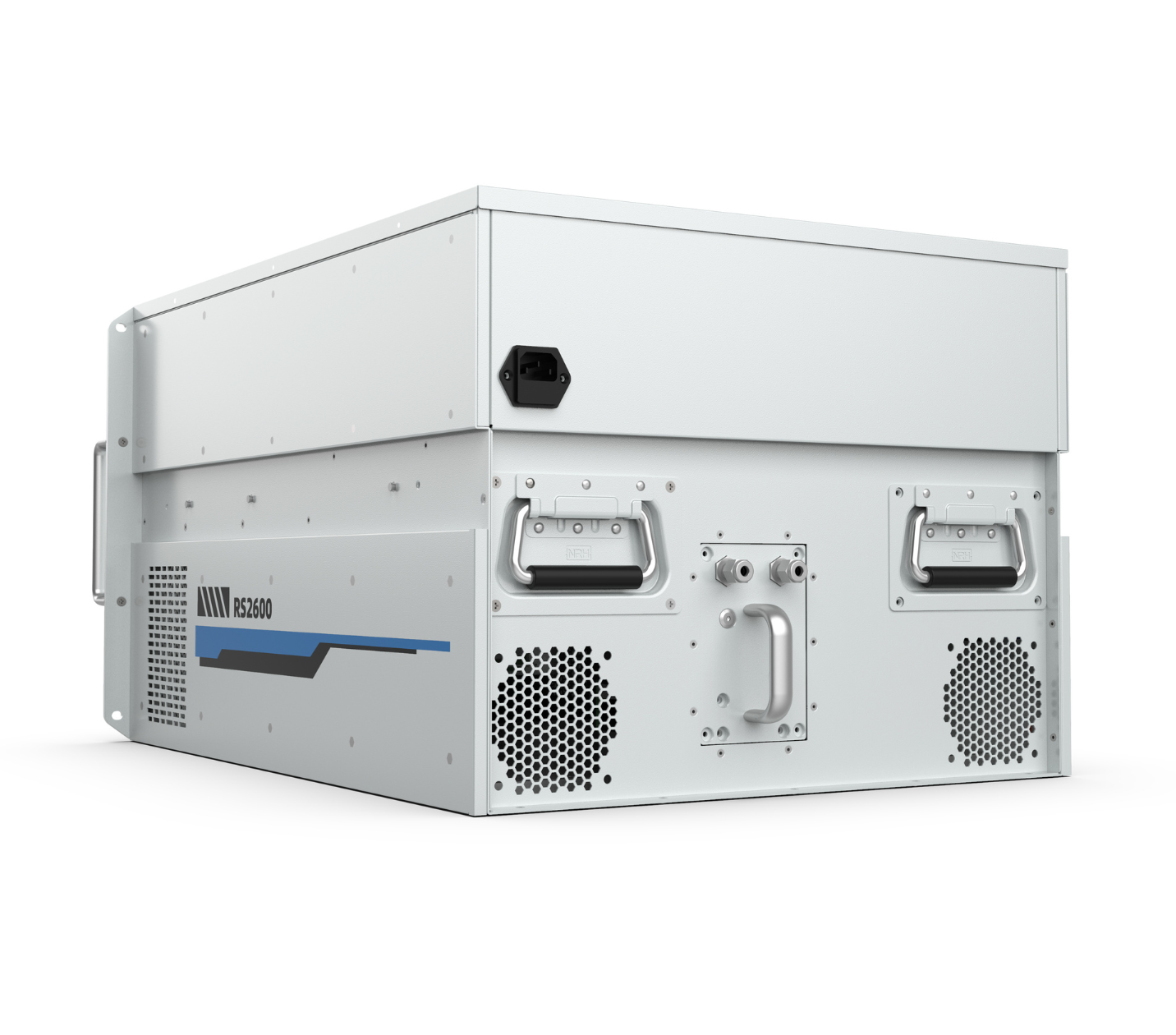

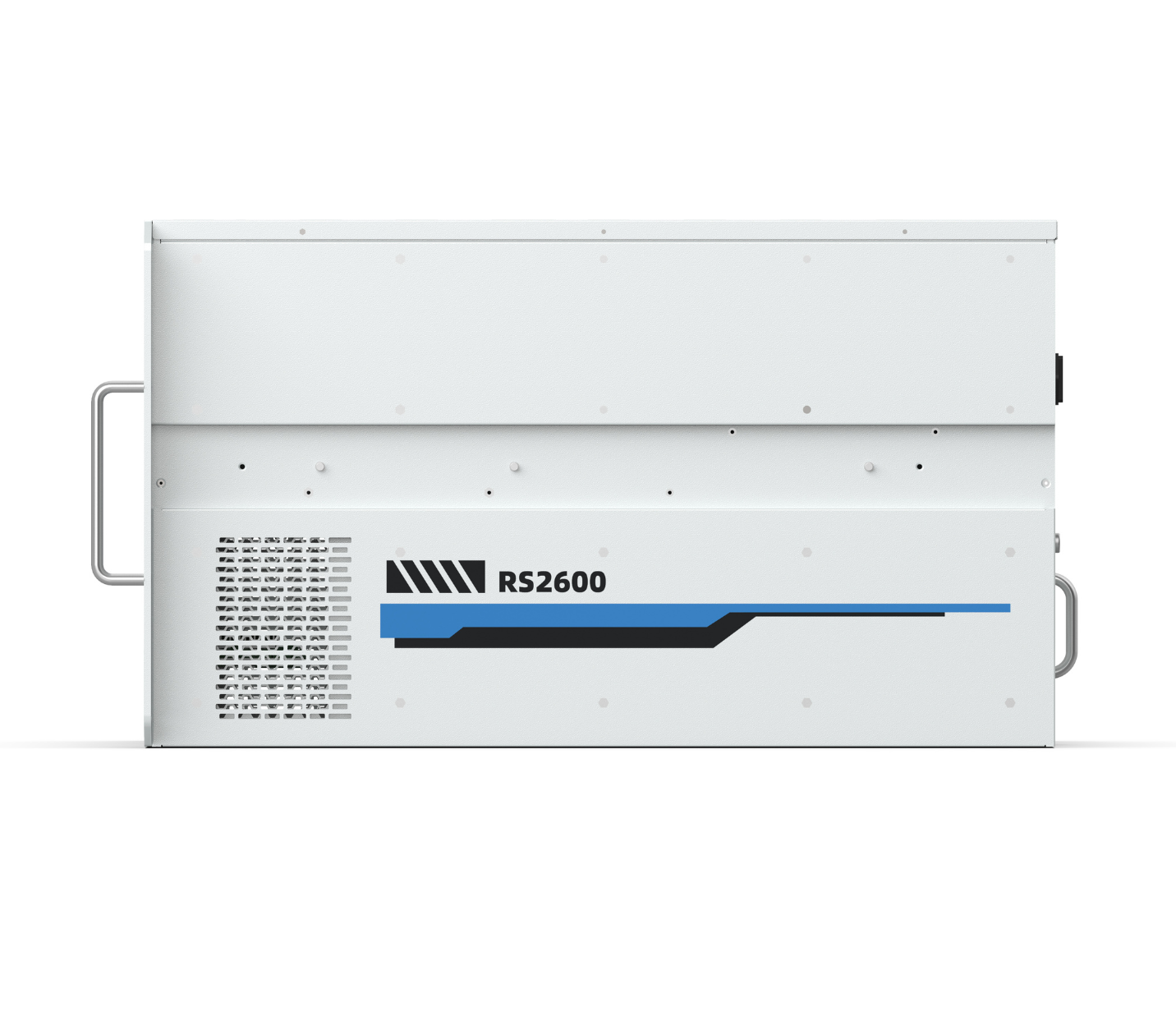

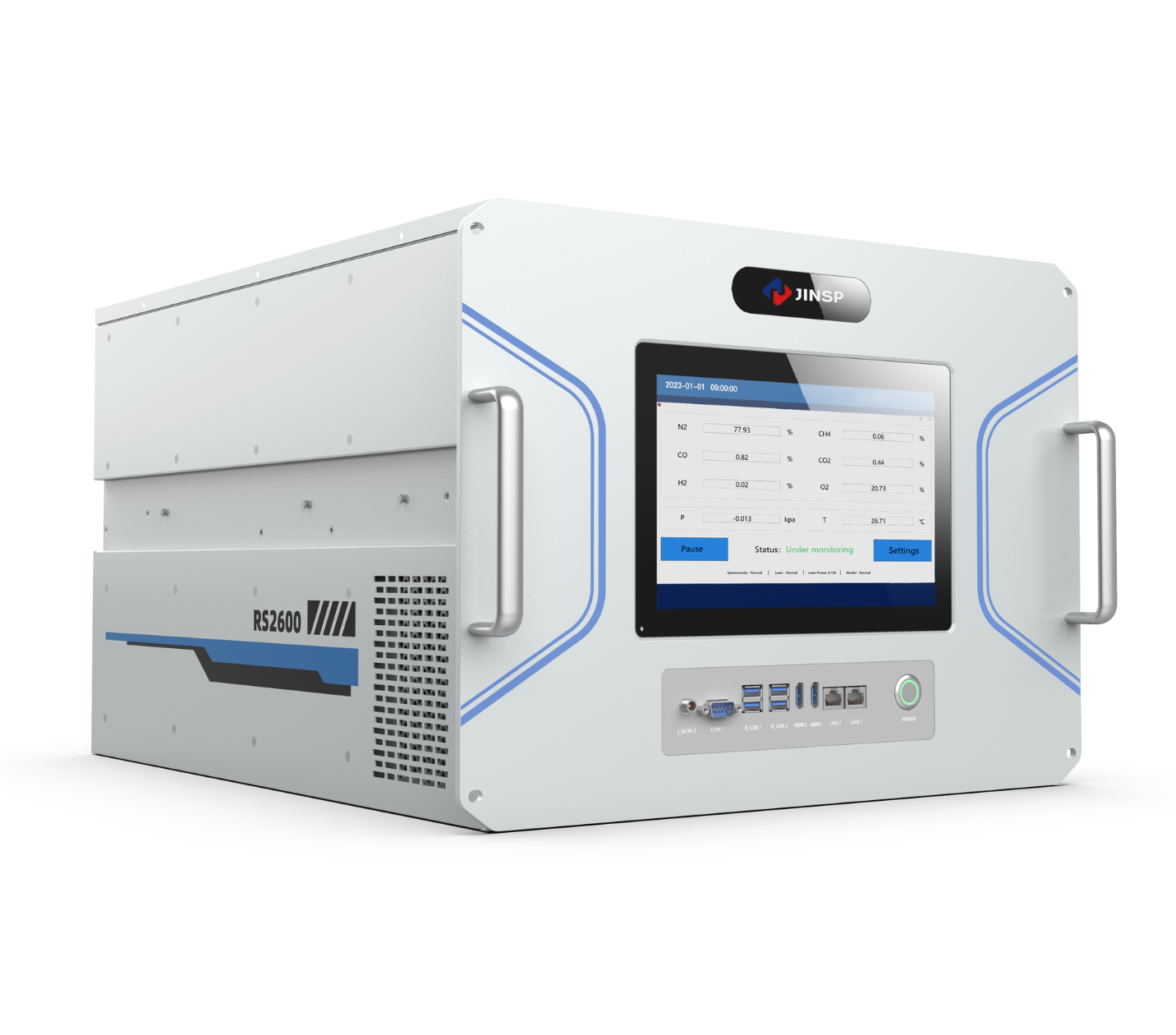

RS2600 Multi-Gas Analyzer
Request Info / Quote Request Info / Quote
Product Highlights
Multi-Component:
Simultaneous online analysis of multiple gases.
Rapid Response:
Detection in less than 2 seconds.
Maintenance-Free:
Operates under high pressure with direct detection, requiring no consumables (no chromatographic column or carrier gas).
Universal Detection:
Measures over 500 gases, including symmetric molecules (N2, H2, F2, Cl2) and gas isotopologues (H2, D2, T2).
No Need for Pressure Control:
Quantification is not affected by changes in sample gas pressure.
Wide Quantitative Range:
Detects concentrations from ppm to 100%.
Analysis Capabilities & Software
Detectable Gases Include
- Petrochemical Industry: CH4, C2H6, C3H8, C2H4, and other hydrocarbons.
- Fluorine Chemical Industry: F2, BF3, PF5, SF6, HCl, HF, and other corrosive gases.
- Metallurgical Industry: N2, H2, O2, CO2, CO, etc.
- Pharmaceutical Industry: NH3, H2S, O2, CO2, and fermentation gases.
- Gas Isotopologues: H2, D2, T2, HD, HT, DT, etc.
Typical Spectra
Here are some typical spectra of gases analyzed by the RS2600 Multi-Gas Analyzer:
Gas Mixture Analysis
| Component | Concentration (ppm) |
| CH4 | 50 |
| C2H6 | 30 |
| C3H8 | 40 |
| C2H4 | 15 |
| C3H6 | 20 |

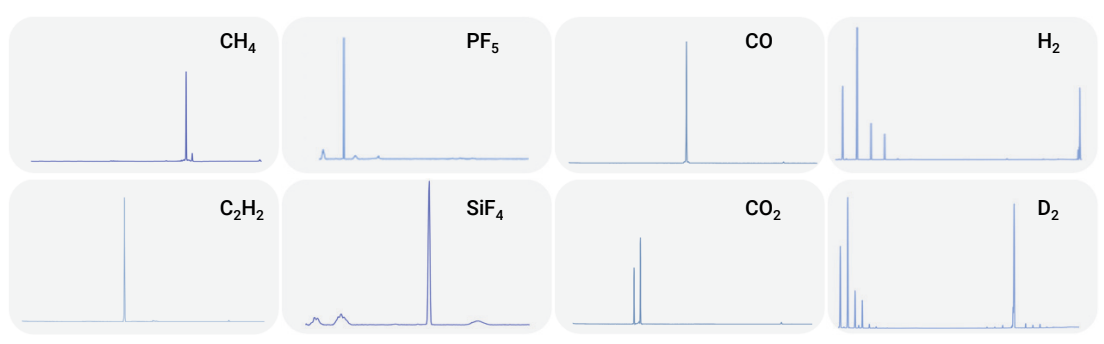

Standard Gas Spectra
Software Functions
The analyzer uses a quantitative model of multiple standard curves, combined with chemometric methods, to establish the relationship between the spectral signal (peak intensity or peak area) and the content of multi-component substances.
Changes in sample gas pressure and test conditions do not affect the accuracy of quantitative results, eliminating the need for a separate quantitative model for each component.
Product Specifications
| Technical Principle | Raman spectroscopy |
| Laser excitation wavelength | 532 ± 0.5 nm |
| Spectral coverage | 200 ~ 4200 cm-1 |
| Spectral resolution | ≤8 cm-1 at full spectral range |

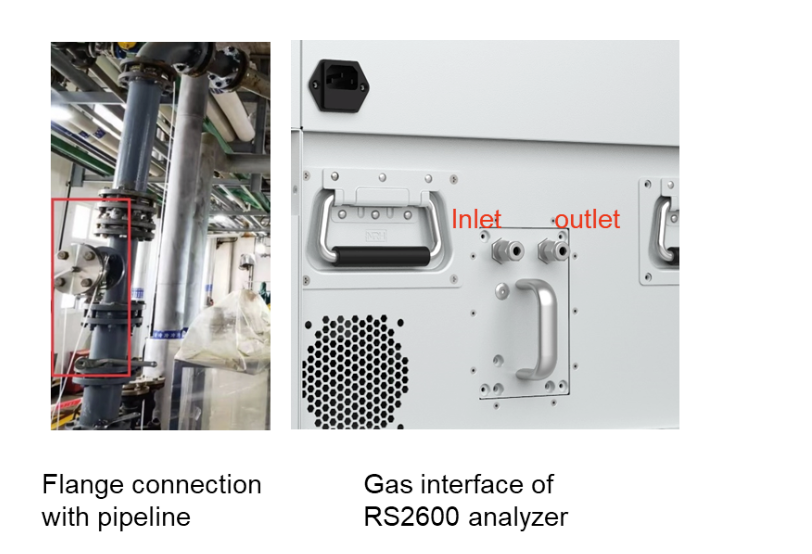

| Air circuit interface | 6 mm standard tube fitting (3 mm, 1/8”, and 1/4” are optional) |
| Connection interface | USB2.0, RS232 DB9, RJ45 |
| Warm-up time | <10 min |
| Input voltage | 100~240 VAC, 50~60 Hz |
| Sample gas temperature | -50 ~ 40 ºC |
| Sample gas pressure | <1.0 MPa |
| Ambient temperature | 0 ~ 35 ºC |
| Ambient humidity | 0 ~ 90% RH |
| Unit dimensions | 485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight | 40 kg |
Usage/Implementation

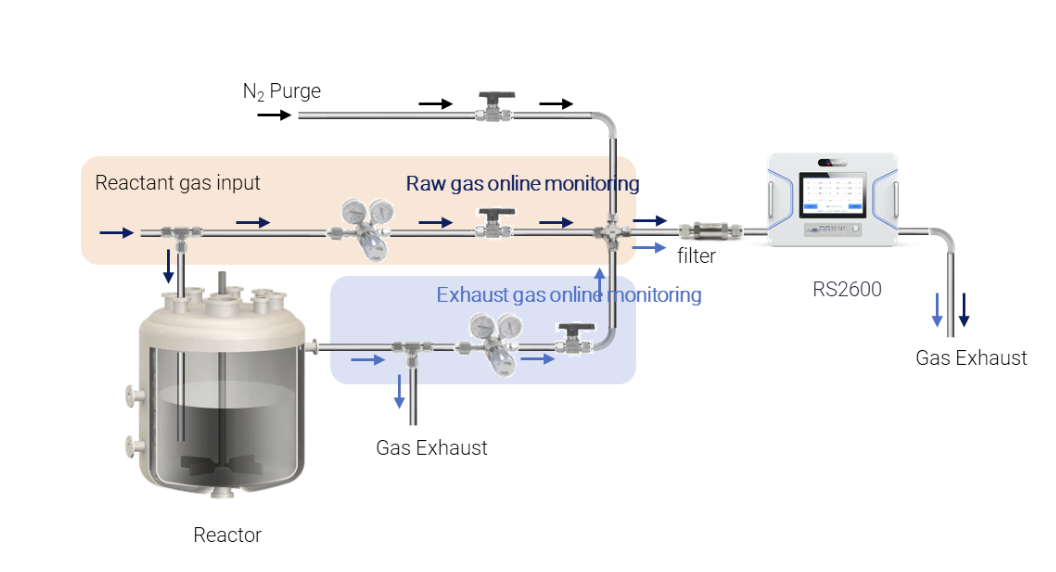

Through valve control, the RS2600 can monitor
- The concentration of each component in reactant gas.
- Alarm for impurities in reactant gas.
- The concentration of each component in exhaust gas.
- Alarm for hazardous gases in exhaust gas.
The RS2600 Multi-Gas Analyzer is ideal for various industries, including:
- Natural Gas Industry
- Metallurgical Industry
- Coal Chemical Industry
- Fluorine Chemical Industry
- Electronic Special Gas Industry
- Pharmaceutical Chemical Industry
Examples of Typical Applications
Detection of Components in Reaction and Emitted Gases of Fluorine Materials:
